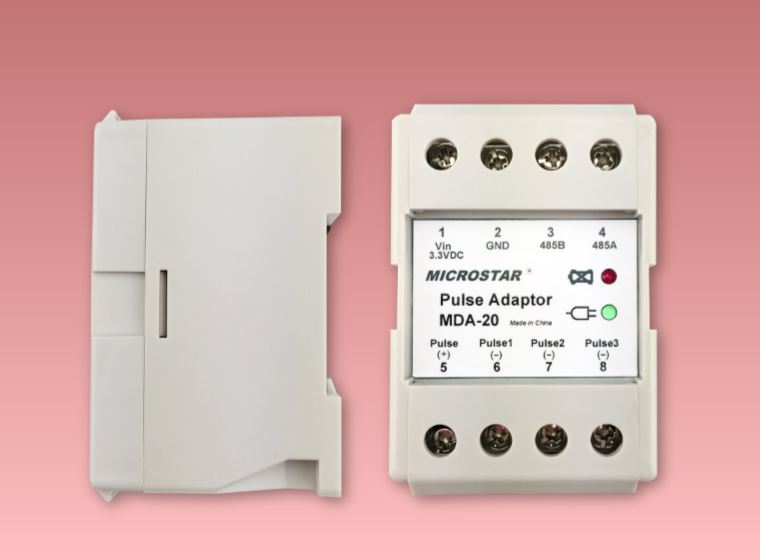

MICROSTAR
MDA-20
Pulse Adapter
Integrate Non-Smart Electricity, Gas, Water Meter into AMI System
Features
Integrate non-smart meters into AMI/AMR system
Supports cold water, hot water, gas and electricity meter pulse collection
Reduce revenue loss by monitoring and real-time data collection
Ultra-low power consumption to last 10+ years with lithium battery
RS485 or RF connection to meter or DCUs for flexible installation
Configurable parameters including meter constant, initial values and more
Automatic data storage with up-to 8 months of historical data
Support Time of Use (TOU) revenue with up-to 4 tariffs
Specifications
Dimension: 80mm x 55mm x 71mm
Weight: 0.3kg
Operating Voltage: 3.3VDC
Power Consumption: < 50mA (Pulse/Comms), < 20uA (Idle)
Operating Temperature: -20°C ~ +60°C
Humidity Range: 0-95%
Local Communication: RS485 or RF (433/470/868MHz)
Pulse Constant Types: Electricity, Gas, Cold & Hot Water Meter
