MICROSTAR

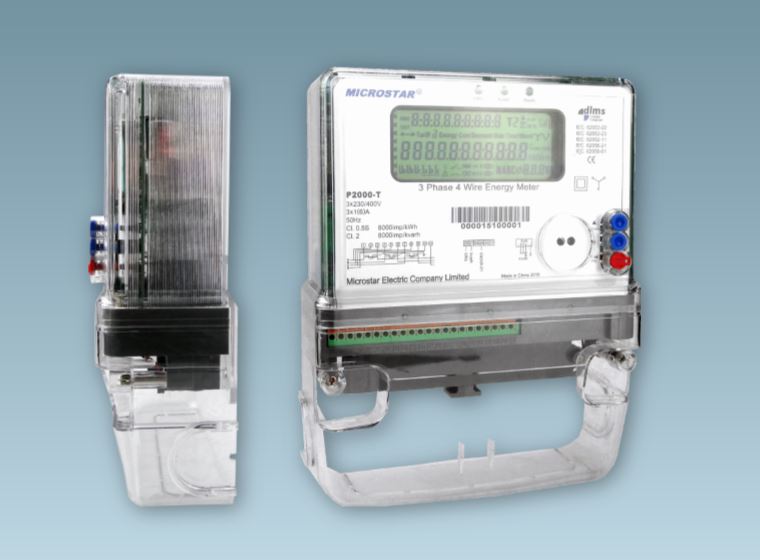

P2000-T
Transformer Operated Three Phase Smart Meter
Class 0.2s, Class 0.5s
IEC 62053-22, IEC 62053-23, IEC 62052-11, EN 50470
Features
-
High accuracy measurement of bi-directional energy and demand
-
Instrumentation of voltage, current, power, power factor, frequency and harmonics
-
Two configurable load profiles with 450 days capacity at 60' interval
-
Four event logs with power quality or tampering events
-
Internal real-time clock with super-capacitor or lithium battery backup
-
Encapsulation type meter casing for superior reliability and security
-
Supports DLMS/COSEM, IEC62056-21, or MODBUS protocol
-
AMI/AMR ready with hot-pluggable communication module
Specifications
Connection Type: Three Phase Three/Four Wire
Accuracy Class: Class 0.2s, Class 0.5s
Rated Voltage: 57.7/100V to 240/415V
Rated Current: 1(10)A, 1(5)A, 5(6)A
Dimensions: 255mm x 200mm x 84.5mm
Weight: 1.55kg (approximately)
Insulation: Protective Class II
Ingress Protection: IP54
LCD: Two line 8 or 11 digits with back-light
Display Items: 200 configurable items
Real-time Clock: < 0.5s / 24 hours
Auxiliary Supply: 48V- 240V (optional)
Local Communication: Optical, RS485, RF, PLC
Remote Communication: GPRS/3G/4G, Wi-Fi, Ethernet
Harmonics: Up-to 31th order with THD
Voltage Sag & Swell: 25 levels with sub-second detection
